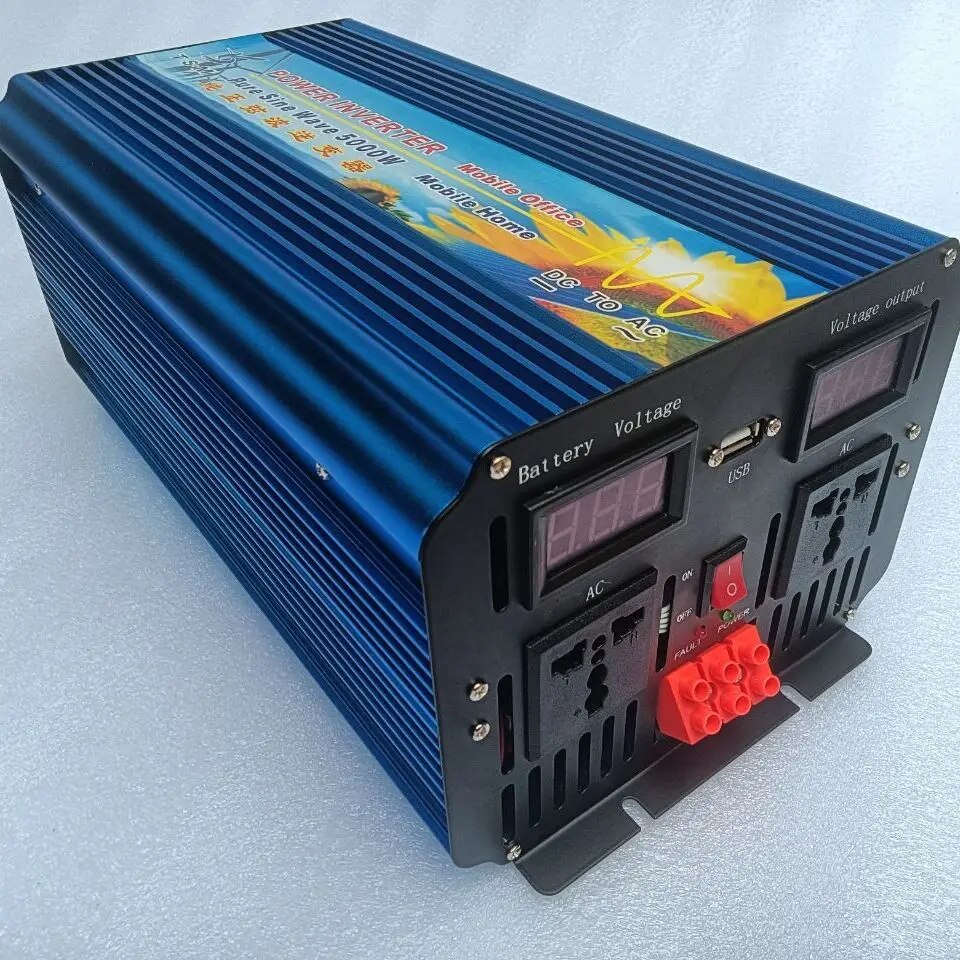

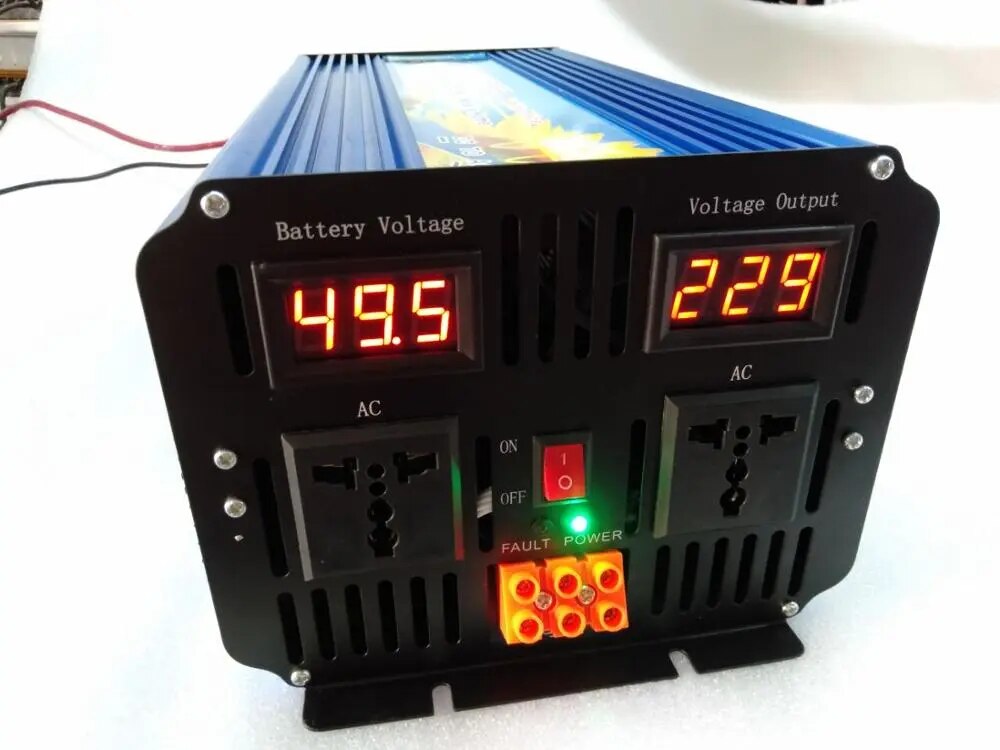

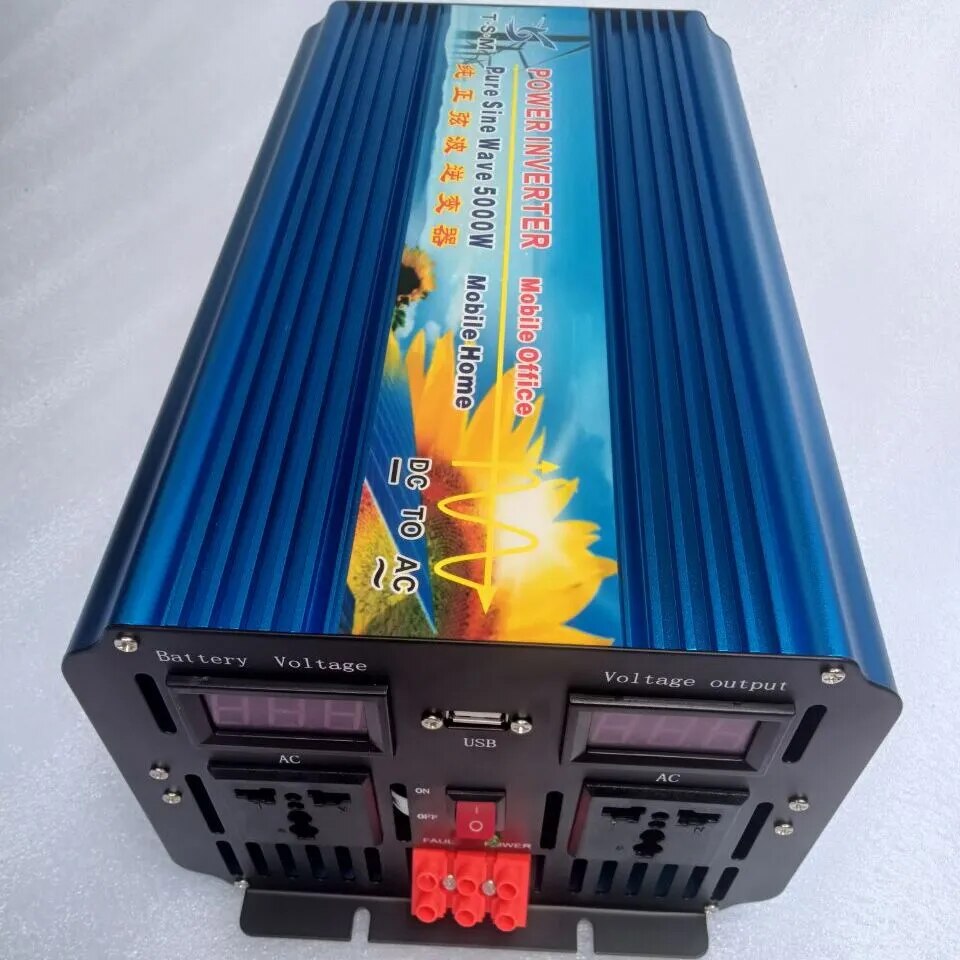

5000W/5kw Off Grid Pure Sine Wave Power Inverter

PRODUCT FEATURES

·Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

·Pure sine wave output.

·Small, light and artistic, benefited from adopting the SMD pastern technology.

·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

APPLICABLE FOR

·Solar electric energy generation.

·Wind power generation.

·Communication equipment.

·Industrial intellectual control system.

·Small sized emergency power supply system.

Technical parameters: (Model: CZ-5000S)

Input part

DC voltage: 12V or 24V or 48V or 110V

Voltage range: 10-15VDC or 20-31VDC or 40-60VDC or 96-127VDC

No load current draw: <1.9

Efficiency: >85%

DC connection: Cables with terminal

Output part

AC voltage: 100/110/120VAC or 220/230/240VAC

Continuous power: 5000W

Surge power: 10000W

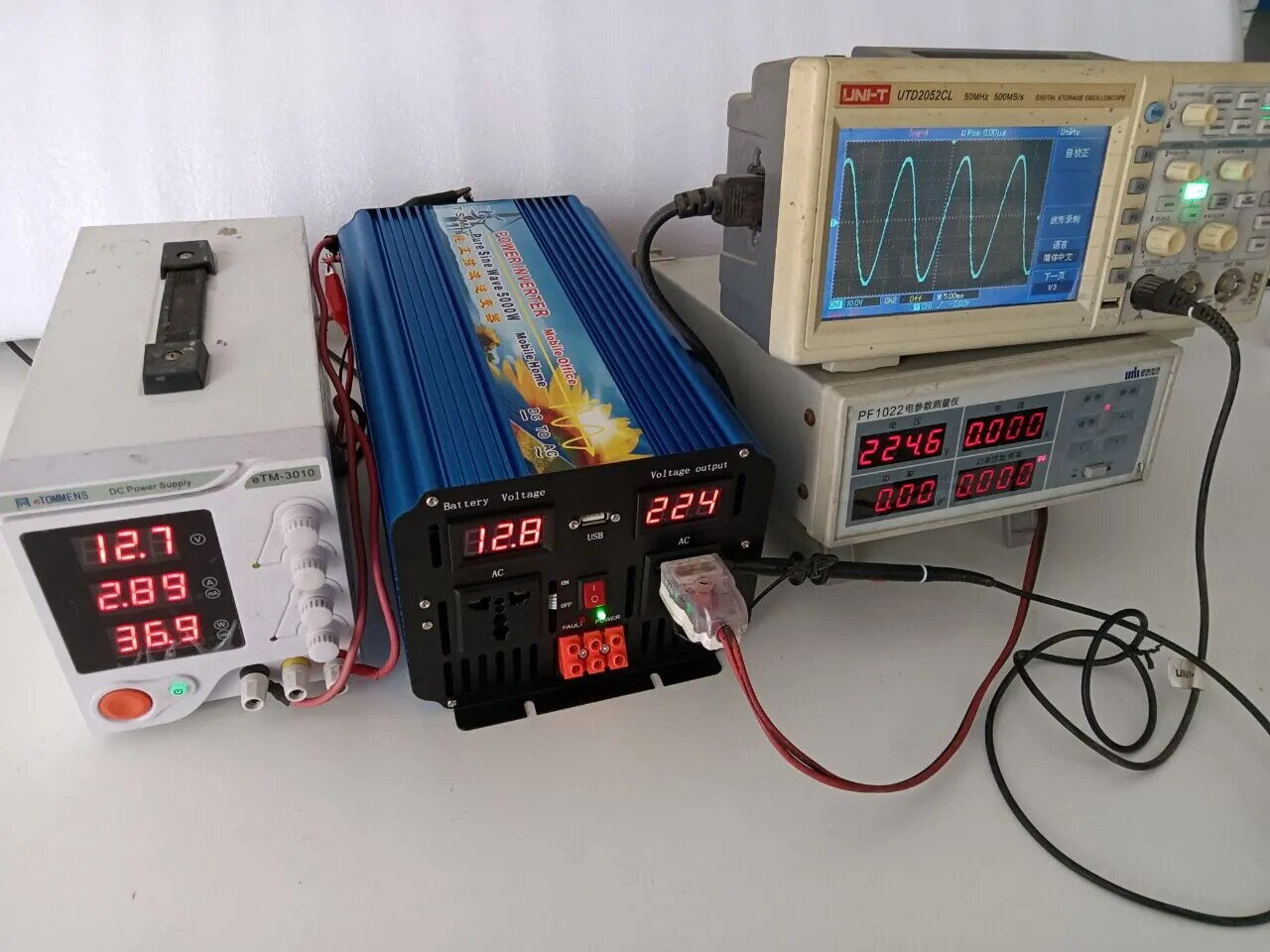

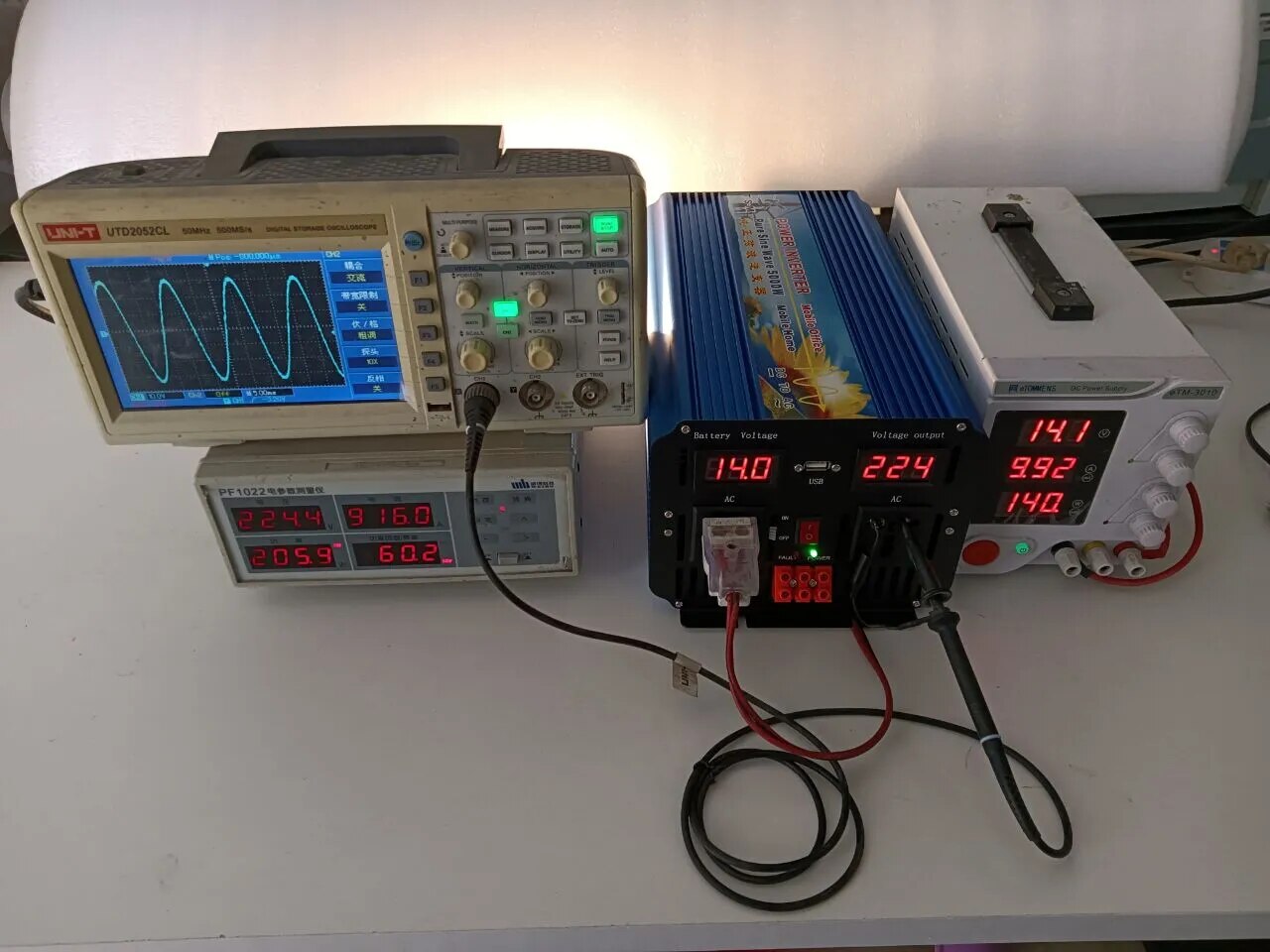

Waveform: pure sine wave

Frequency: 50Hz or 60Hz

AC regulation: 3%

Protection part

Low voltage alarm: 10.5DC±0.5V or 21DC±1V or 42VDC±1V or 100VDC±1V

Low voltage shut down: 10DC±0.5V 20DC±1V 40VDC±1V 96VDC±5V

Over load: shut off output

Over voltage shut down: 15.5V or 30.5V or 61.2V or 120V

Over thermal: shut off output automatically

Environment Part

Working temperature: Between -10  and +50

Working humidity: 20%—90%RH

Storage temperature: Between -30  and +70

Other part

Start: soft start

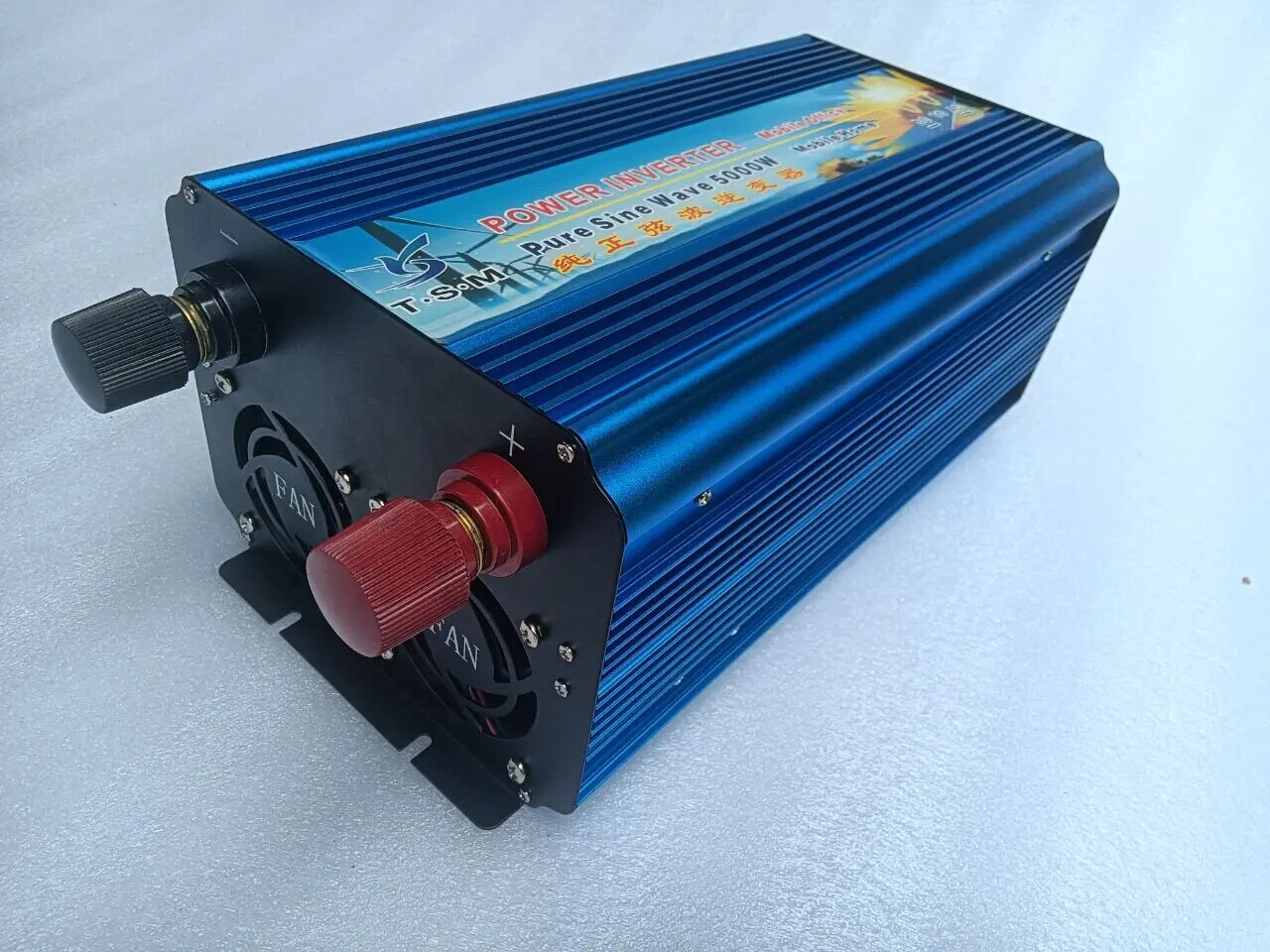

Cooling ways: intelligent cooling fan
